Visioprobe Pan-Tilt-Zoom Camera Systems

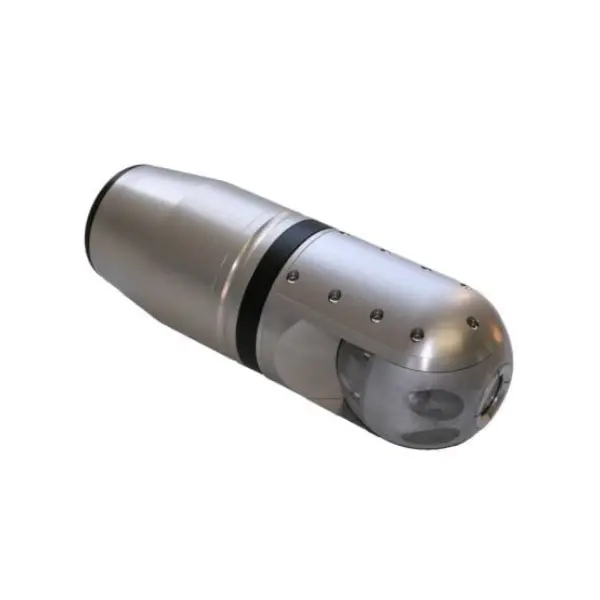

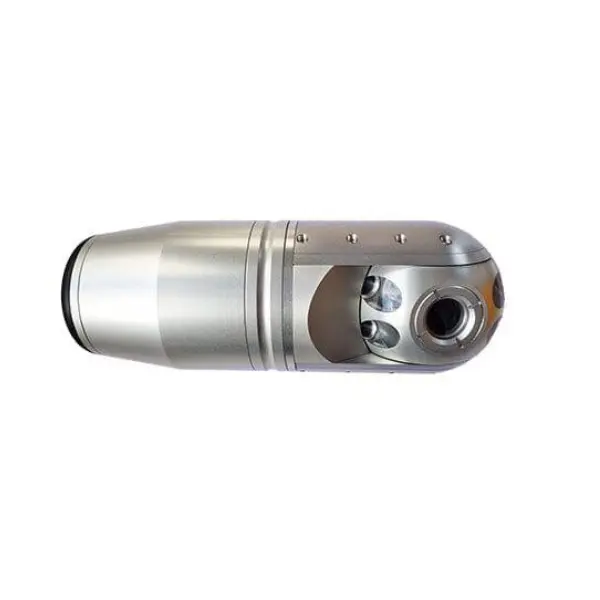

The VISIOPROBE VP90A-Z and VISIOPROBE VP90A-ZHD are Pan-Tilt-Zoom Camera Heads. Both have a 90mm OD, have housings made of Anodized Aluminum with Integrated Ultra Bright LED Lighting, are Waterproof up to 5 bars, and work with an assortment of accessories and the Visoprobe Controller Unit. The primary difference between the two heads is Analog PAL Definition vs Full HD Definition.
The VISIOPROBE VP90A-Z and VISIOPROBE VP90A-ZHD are Pan-Tilt-Zoom Camera Heads. Both have a 90mm OD, have housings made of Anodized Aluminum with Integrated Ultra Bright LED Lighting, are Waterproof up to 5 bars, and work with an assortment of accessories and the Visoprobe Controller Unit. The primary difference between the two heads is Analog PAL Definition vs Full HD Definition.
Details
Details
• 90mm OD – Anodized Aluminum
• Pan 360°, Tilt +/- 90°, Zoom 10x
• Autofocus from 250mm to ∞
• Wide 58° to Narrow 7° Fields of view
• 4 Ultra Bright White LEDs
• Waterproof Housing (up to 5 atms/bars)
• 2.2 kg weight
Specifications
VP90A-ZHD Specifications
| Outer Diameter | 90 mm |
| Pan Range | 360° infinitely |
| Tilt Range | -90° to +90° |
| Optical Zoom | 10x |
| Image Sensor | 1/3″ HD CMOS 1080p |
| Resolution | 4 megapixels |
| Video output | HD-SDI |
| Focus/Depth of Field | f = 3.3-33mm, 10mm – infinity adjustable |
| Field of View | 7 to 58° |
| Shutter | Auto/Manual |
| Lens Cover | Sapphire glass |
| Light Sensitivity | N/A |
| Aux Lighting/Intensity | 4 white LEDs/4250 lux @ 300 mm distance |
| Water Resistance | 5 bars/atms |
| Operating Temperature | -30° to 65°C |
| Material | Anodized aluminum |
| Weight | 2.2 kg (4.8 lbs) |
| Length | 260 mm |
VP90A-Z Specification
| Outer Diameter | 90 mm |
| Pan Range | 360° infinitely |
| Tilt Range | -90° to +90° |
| Optical Zoom | 10x |
| Image Sensor | 1/3″ color CMOS |
| Video output | SD |
| Focus/Depth of Field | f = 3.3-33mm, 10mm – infinity adjustable |
| Field of View | 7 to 58° |
| Shutter | Auto/Manual |
| Lens Cover | Sapphire glass |
| Light Sensitivity | N/A |
| Aux Lighting/Intensity | 4 white LEDs/4250 lux @ 300 mm distance |
| Water Resistance | 5 bars/atms |
| Operating Temperature | -30° to 65°C |
| Material | Anodized aluminum |
| Weight | 2.2 kg (4.8 lbs) |
| Length | 242mm |
