ITI UVU Videoscope (Discontinued)
With lengths up to 6 meters and 4-way articulation, the UVU Videoscope System from ITI has been specially designed to enable easy access into hard-to-reach areas in order to identify fluorescent magnetic particle and dye penetrant indications.
Ideal for power generation, aerospace, and aircraft applications, the ITI UVU Videoscope System means significantly less time is needed for the inspection process, while reliability of the process is greatly increased.

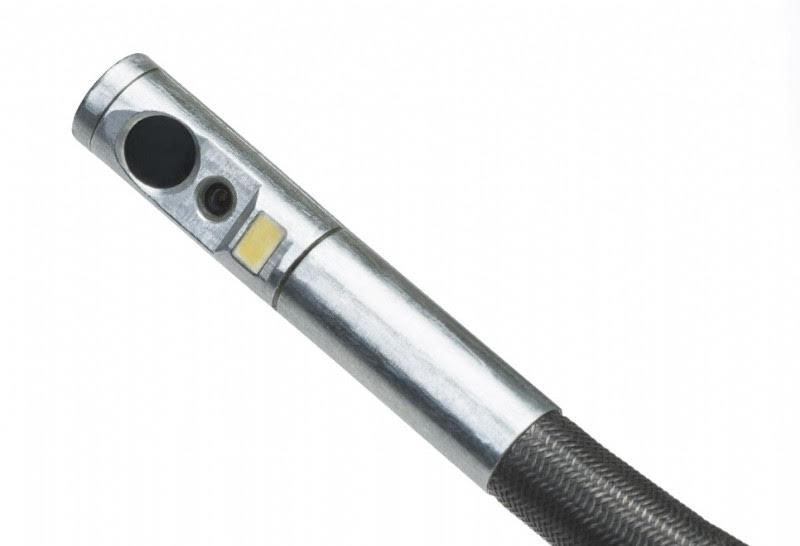

The system’s LED UV lights are positioned in the tip of the scope, where they meet or exceed all current specifications for intensity at relative distances. In addition, the internal high-definition camera connects directly to the computer – the digital data displayed can be recorded, saved, or simply and quickly evaluated.
With lengths up to 6 meters and 4-way articulation, the UVU Videoscope System from ITI has been specially designed to enable easy access into hard-to-reach areas in order to identify fluorescent magnetic particle and dye penetrant indications.
Ideal for power generation, aerospace, and aircraft applications, the ITI UVU Videoscope System means significantly less time is needed for the inspection process, while reliability of the process is greatly increased.
The system’s LED UV lights are positioned in the tip of the scope, where they meet or exceed all current specifications for intensity at relative distances. In addition, the internal high-definition camera connects directly to the computer – the digital data displayed can be recorded, saved, or simply and quickly evaluated.
Details
Features:
- A compact control box for easy toggling between UV and white light.
- A built-in light source, eliminating a heavy, external UV lightbox and yielding lower operating cost than arc lamp sources.
- Plug into your laptop—no dedicated, proprietary computer to update and maintain.
- Turnkey software to display data for immediate evaluation or to capture and save high resolution images and video.
- Optional measurement software and/or computer if needed.

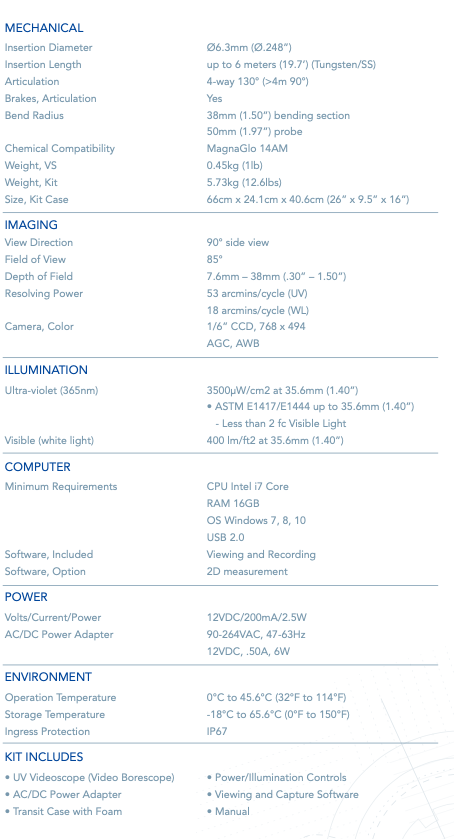

Specifications
