Tinius Olsen EVOTECH 13** Series Tester

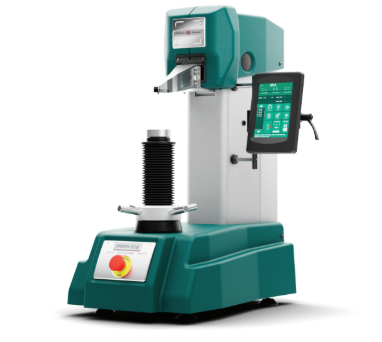

The Evotech 1310, 1320, and 1330 are advanced, next-generation Rockwell hardness testers designed with a distinctive long, protruding nose. This specialized design enables precise hardness testing up to 150mm inside bores, as well as on flat surfaces, offering greater versatility and accessibility than standard models. Ideal for both internal and external applications, the Evotech series combines innovative engineering with the reliability expected from traditional Rockwell testing instruments.
The Evotech 1310, 1320, and 1330 are advanced, next-generation Rockwell hardness testers designed with a distinctive long, protruding nose. This specialized design enables precise hardness testing up to 150mm inside bores, as well as on flat surfaces, offering greater versatility and accessibility than standard models. Ideal for both internal and external applications, the Evotech series combines innovative engineering with the reliability expected from traditional Rockwell testing instruments.
Details
Features and Benefits:
- Load Cell, closed loop, force feedback system
- 150mm protruding nose, 200mm throat depth
- Load Range 1-187.5kgf
- Meets or exceeds ISO, ASTM, JIS Standards
- Hysteresis free mechanical system
- 250mm workpiece height (1310) 400mm height (1320/1330)
- Power LED lights for sample illumination
- Industrial 6.5″ touch screen display
- Optional palm scanner for brinell measurement

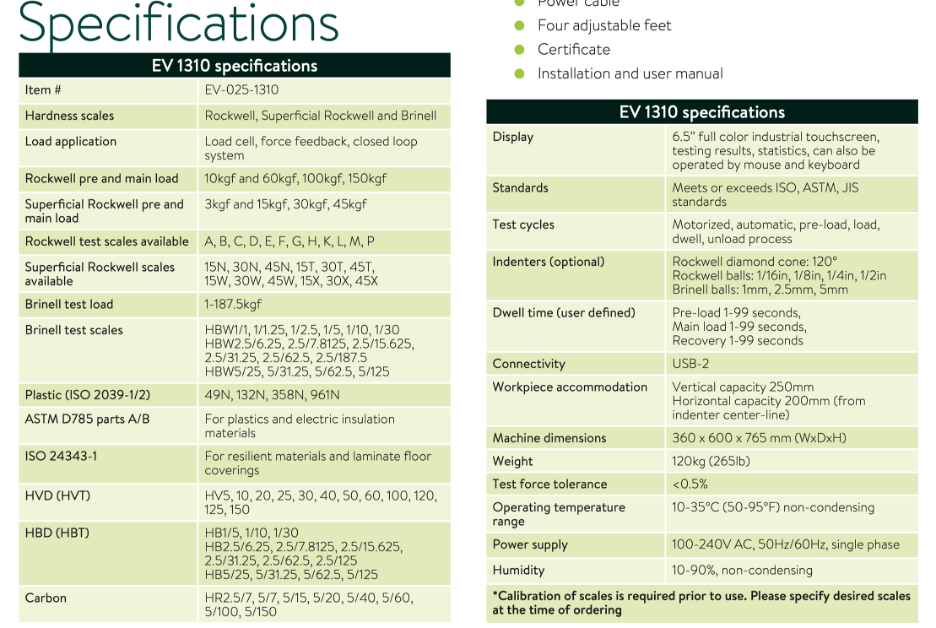

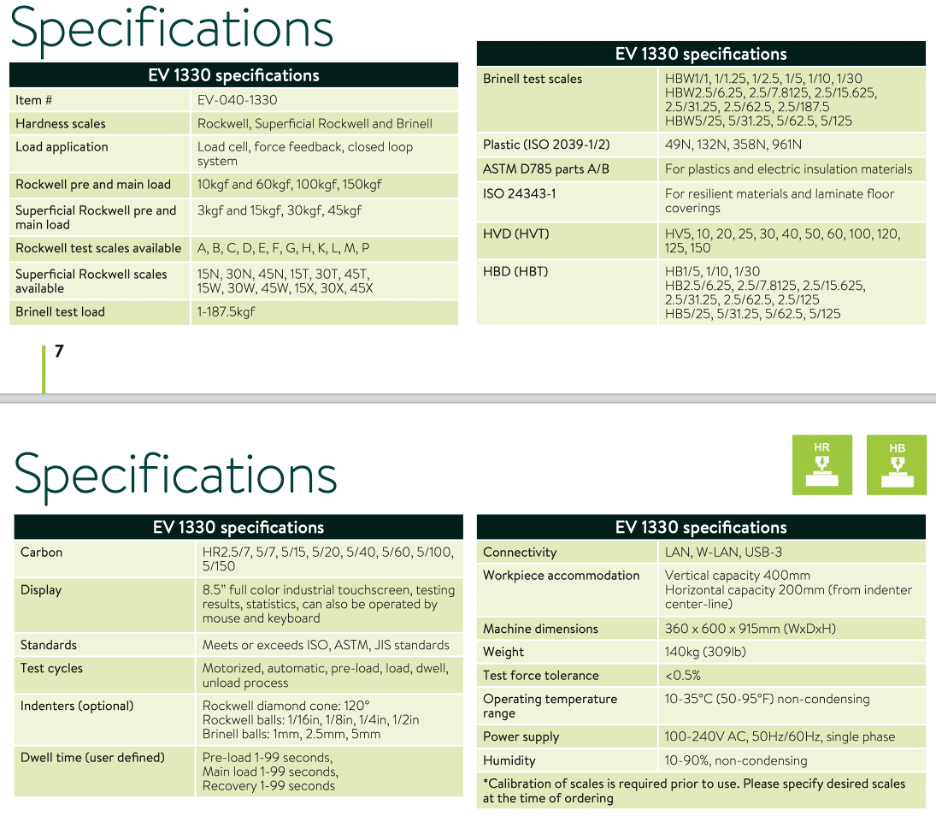

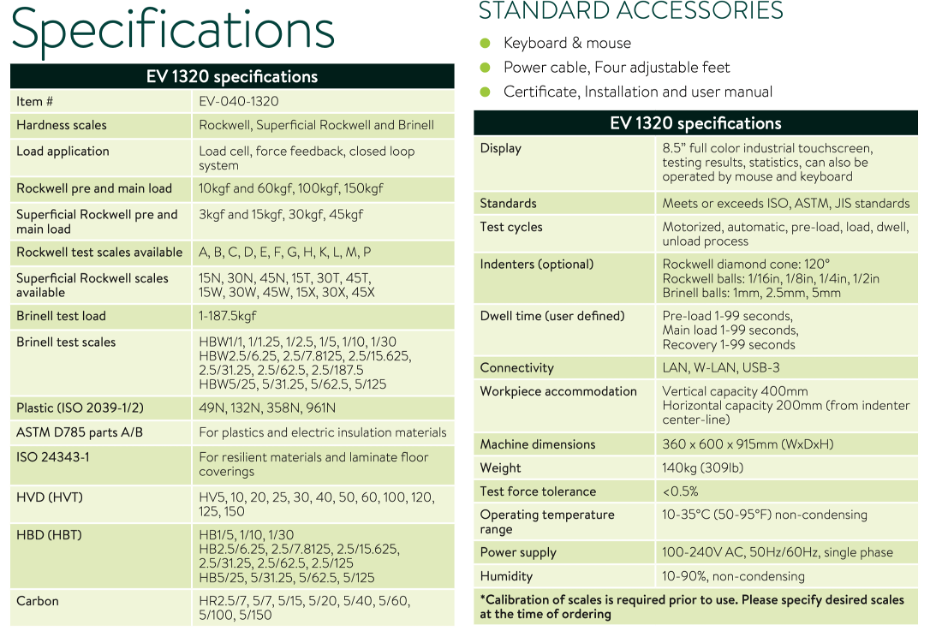

Specifications
