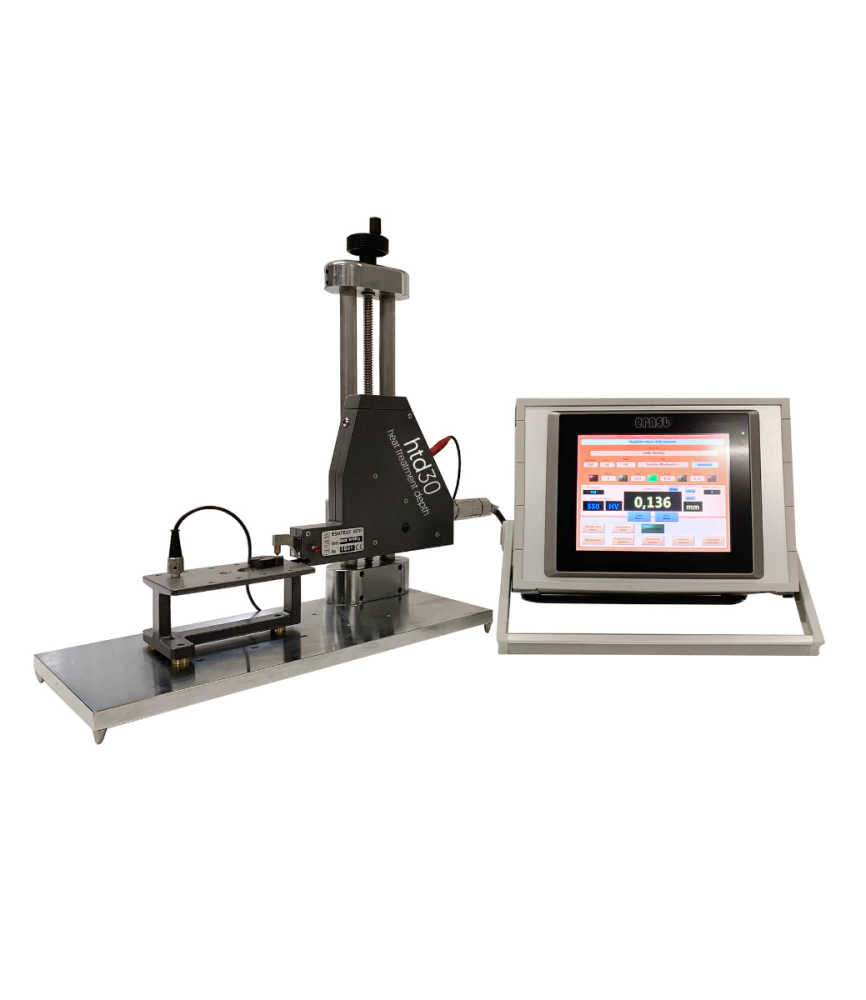

Ernst HTD30 Indentation Case Depth System
The HTD30 by Cisam-Ernst is a non-destructive, high-precision case depth measurement tool, delivering results in under a minute. Using a patented single-impression method and proprietary algorithm, it generates a load-hardness curve to accurately measure heat treatment depth (0.02–0.2 mm) without damaging the workpiece—eliminating the need for sectioning or polishing.
The HTD30 by Cisam-Ernst is a non-destructive, high-precision case depth measurement tool for hardened layers, delivering results in under a minute. Using a patented single-impression method and proprietary algorithm, it generates a load-hardness curve to accurately measure heat treatment depth (0.02–0.2 mm) without damaging the workpiece—eliminating the need for sectioning or polishing.
Details
Key Features of HTD30:
- Measurement Range: Case depth determination from 0.02 mm to 0.2 mm.
- Rapid Measurement: Obtain accurate results in less than a minute.
- Non-destructive: Safeguard the integrity of your workpiece.
- Precision: Eliminate influences from bending or subsidence.
- Proprietary Algorithm: Transform data into actionable insights.
- Efficiency: Equivalent to numerous impressions in a single point.
Technical details
| Power supply | 100/250 VAC, 50/60 Hz |
| Loads | 1kgf – 30kgf |
| Norms and certifications | DIN 50158 ASTM E-18 indirect method on certified test block ISO 6508 indirect method on certified test block |
| Minimum measurable diameter | 4 mm |
| Selectable functions | Load selection – language – calibration hardness measure – schematic curve hardness curve – tolerances – sequence – file scale – histogram |
| Output interfaces | USB – Ethernet |
| Reading | Direkt reading of case depth on touch-screen display 8” Schematic curve with case depth value at the predetermined hardness Stats and overlay of curves |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Automatic with selected load value according to case depth |
| Weight | ca. 32 kg |
| Standard scales | mm/inch cut-off hardness in HV/HRC |
| Load time | Test cycle depending on maximum applied load |
| Working area dimensions | Case depth through evaluation of the load-penetration curve and tested algorythm |
| Overall dimensions | Malnate – Cantiere Via I Maggio |
Specifications
Technical details
| Power supply | 100/250 VAC, 50/60 Hz |
| Loads | 1kgf – 30kgf |
| Norms and certifications | DIN 50158 ASTM E-18 indirect method on certified test block ISO 6508 indirect method on certified test block |
| Minimum measurable diameter | 4 mm |
| Selectable functions | Load selection – language – calibration hardness measure – schematic curve hardness curve – tolerances – sequence – file scale – histogram |
| Output interfaces | USB – Ethernet |
| Reading | Direct reading of case depth on touch-screen display 8” Schematic curve with case depth value at the predetermined hardness Stats and overlay of curves |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Automatic with selected load value according to case depth |
| Weight | ca. 32 kg |
| Standard scales | mm/inch cut-off hardness in HV/HRC |
| Load time | Test cycle depending on maximum applied load |
| Working area dimensions | Case depth through evaluation of the load-penetration curve and tested algorythm |
| Overall dimensions | 40cm L x 50cm W x 35cm H |
